What is the stringer notcher machine?
Stringer notcher machine is a kind of wooden pallet-making machine.
The common pallet making machines are including cut-off saw, double end trim saw, sanding pallet material, chamfering machine, stringer notcher machine, corner-cutting machine, nailing machine, etc.

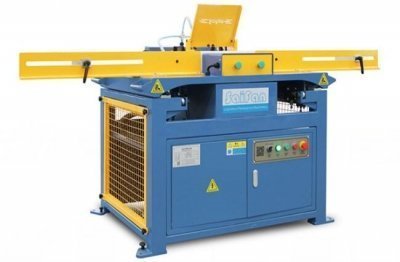

SF7011 single head wood pallet notching machine
Processing
put 3 pieces of stringers ( each thickness≤50mm) together on the left or right side, press the two starting buttons by both hands, 4 seconds later the first notch is made. Then transferred to the opposite gear, repeat the above action, and the notching work is done.
Details pictures
Technical parameter
| Parameter | Value |
| Operator needed | 1 person |
| Power | 1 motor 15kw |
| Voltage | 380V 3Phase 50Hz |
| Working length | 800-1350mm |
| Notching thickness | Max. 150mm |
| Notching depth | Max. 65mm |
| Notching width | Max 304.8mm |
| Notching speed | 600pc/hour |
| Tolerance | ≤1mm |
| Machine dimension L*W*H | 1350*980*1100mm |
| Packaging dimension L*W*H | 1400*1100*1200mm |
| Machine Weight | 820kg |
| Control system | Siemens PLC |
| Exhaust duct | 1pc diameter 150mm |
| Cutter type | Indexable |
| Cutting arc | 25.4mm |
SF7013 double head wood pallet notching machine
Details pictures
put 3 pieces of stringers ( each thickness≤50mm) together on the left or right side, press the two starting buttons by both hands, 4 seconds later the first notch is made. Then transferred to the opposite gear, repeat the above action, and the notching work is done.
Technical parameter
| Power | Cutter motor, 2*15kw=30kw |
| Feeding motor, 0.75kw | |
| Width adjustment motor,0.75kw | |
| Total power, 31.5kw | |
| Voltage | 380v 50hz 3phase |
| Wood length | 800-1500mm |
| Wood thickness | 20-50mm |
| Wood height | 80-120mm |
| Notching depth | Max. 65mm adjustable |
| Notching width | 228.6mm (9 inches) adjustable |
| Number of cutting blades | 2pc side +14pc middle |
| Notching speed | 1200-1800pc/h |
| Tolerance | ≤1mm |
| Machine dimension L*W*H | 2450*1600*1550mm |
| Net Weight | 1400kg |
| Control system | Siemens PLC |
| Exhaust duct | 2pc diameter 150mm |
| Cutter type | Indexable |
| Cutting arc | 25.4mm |
